The story of developing our first single wall fatbike carbon fiber rim LF680S:

After the double-walled carbon fiber fat bike rims were widely recognized by the fatbike field, in 2016 we began to seek a new breakthrough of carbon fatbike wheel  ——  single wall LF680S carbon fiber bicycle rim born. In order to meet the market's demand of extreme lightweight for fatbike wheel, we referred to the traditional aluminum alloy fatbike rim design and developed the 26-inch 80mm wide single-wall fatbike rim. We started the traditional design program and updated to the final design without eyelets. The weight is only 550g, the strength could be fully guaranteed. Meanwhile, because of no eyelets, the usage of rim tape saved, so that the overall weight of the single-wall fatbike rim did not increase too much.

This model of rim could be mounted tire at size 3.5"~4.8".

Product Code LF680S
Material Full Carbon Fibers (Toray T700)
Type Clincher (Hookless)
Warranty Period 2 Years
Size 26" (BSD 559mm)

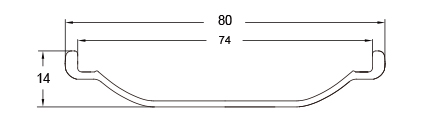

External Width 80mm
Internal Width 74mm
Depth 14mm
Weight 550g
ERD (Effective Rim Diameter) 548mm
Spoke Holes Angle ± 5°
Spoke Holes Diameter 4.5mm (Normal)
Spoke Holes Count 32
Spoke Holes Offset 15mm
Valve Hole Diameter 6.5mm (Presta)
Tubeless Compatible Yes
Carbon Weave Availability UD
Finish Availability Matte / Glossy
Spoke Tension 180kgf
Tire Size 3.5"~4.8"
Tire Pressure 20psi
Carrying Capacity (One Wheel) 130Kg
Application Trail | Enduro | Dirt | Snow | Sand | Mud

Write a review

Note: HTML is not translated!
    Bad           Good

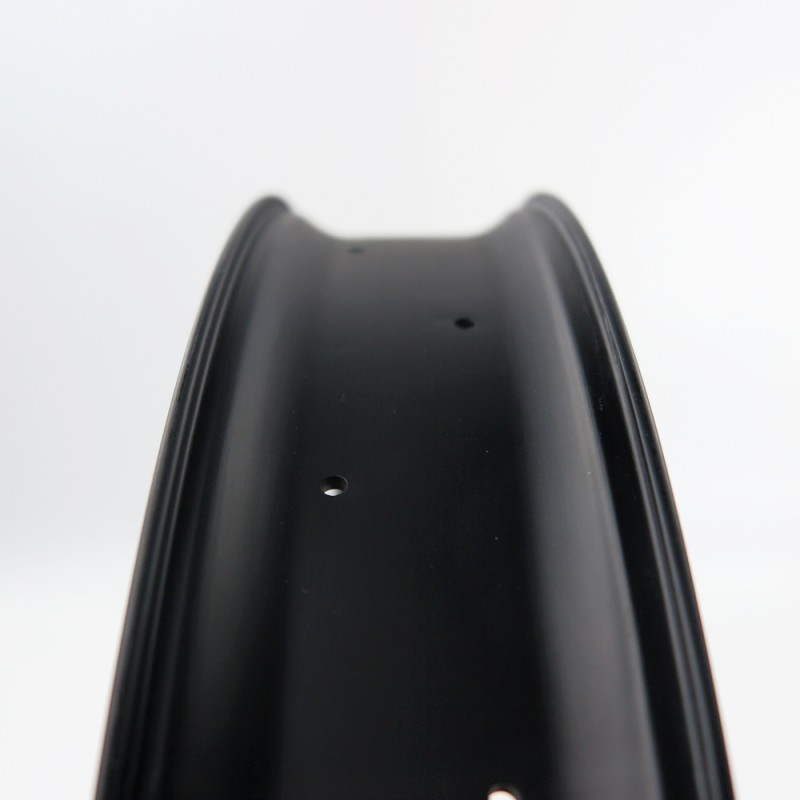

LF680S Single Wall 26" 80mm Fat Bike Carbon Rim

  • Product Code: LF680S
  • Availability: In Stock
  • $220.00

  • 10 or more $194.00
  • 20 or more $176.00
  • 40 or more $165.00

Available Options
