• [LF680] Double Wall 26" 80mm Fat Bike Carbon Rim

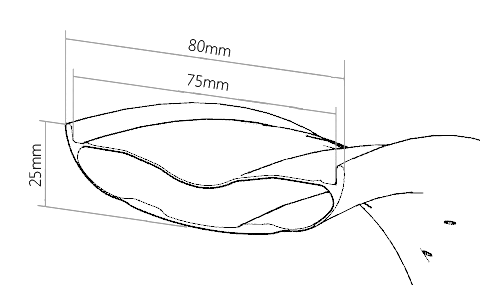

The LF680 carbon fiber bike rim, size 26" 80mm width, was designed in 2015 when carbon fiber fatbike wheels were just emerging. The design of double-wall and flat surface is derived from the early aluminum alloy fat rim, which has been a classic design of fat rims. The flat surface design of the spoke holes wall allows the spoke holes to be drilled with a larger offset of 15mm, which is beneficial to the overall stability of the wheelset. The profile drawing is shown below.

This model of rim could be mounted tire at size 3.5"~4.8". While, to adapt to different cycling experience, we also provide wider 100mm one and narrower 65mm one. They can be mounted wider and narrower tires.

Basic
Product Code LF680
Material Full Carbon Fibers (Toray T700)
Type Clincher (Hookless)
Warranty Period 2 Years
Details
Size 26" (BSD 559mm)
External Width 80mm
Internal Width 75mm
Depth 25mm
Weight 650g
ERD (Effective Rim Diameter) 528mm
Spoke Holes Angle ± 5°
Spoke Holes Diameter 4.5mm (Normal)
Spoke Holes Count 32
Spoke Holes Offset 15mm
Valve Hole Diameter 6.5mm (Presta)
Tubeless Compatible Yes
Carbon Weave Availability UD / 3K / 12K
Finish Availability Matte / Glossy
Recommendation
Spoke Tension 80 ~ 110Kgf ( ≤130Kgf )
Tire Size 3.5''~4.8''
Tire Pressure ≤25psi
Carrying Capacity (One Wheel) 130Kg
Application
Application Trail | Enduro | Dirt | Snow | Sand | Mud
