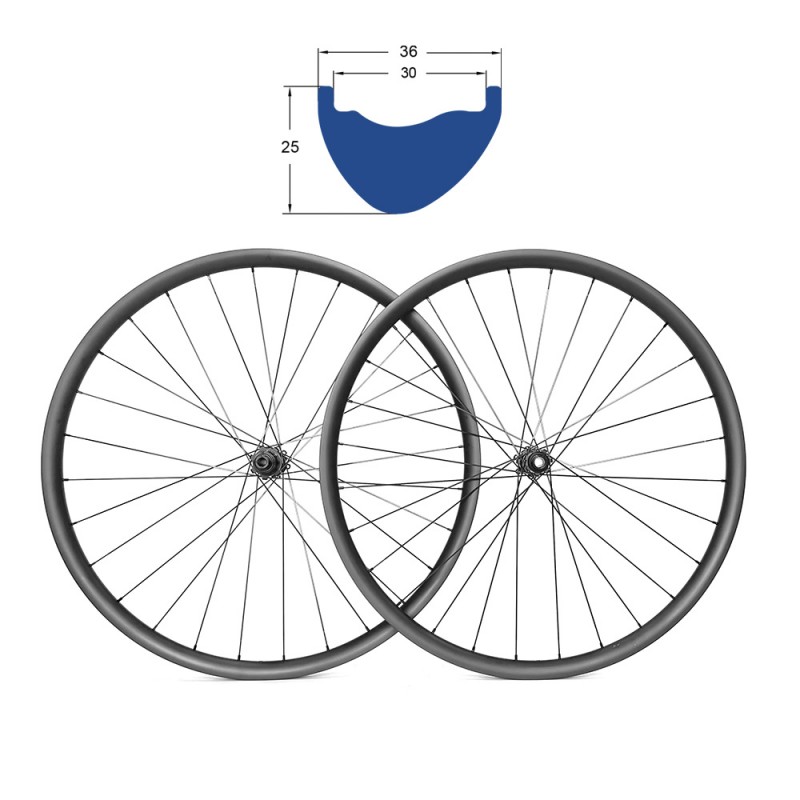

LBW aims to provide entry-level carbon fiber bicycle products with low price and quality assurance. This carbon fiber mountain wheelset LM936ALS001B is only 1610g for all mountain riding, 1670g for enduro, equipped with LM936A rims and our own brand hubs of model LS001B in size boost 15x110/12x148mm. It is equipped with Plain Gauge bladed spokes originally, but you could also upgrade the spokes to Pillar PA 1423 aero spokes or Pillar PSR X-Tra 1420 spokes.

More information about the carbon rims on this wheelset: LM930X

More information about the hubs on this wheelset: LS002B

Product Code LM936ALS001B
Rim Type Hookless / Straight-Sidewall
Warranty Period 1 Year
Wheelset Weight 1610g AM (755g front + 855g rear) 1670g EN (785g front + 885g rear)
Rims LM936A Carbon Fiber, UD Matte 32/32H, 36mm External, 30mm Internal, Asymmetric
Hubs LBW LBW LS001B 15x110 front 12x148mm rear, 32/32H, J-Bend, 6-Bolt, Ratchet 36T, Black
Spokes Plain (Black, Bladed) / Pillar Aero PA 1423 (Black) / Pillar Aero PSR X-Tra 1420 (Black)
Nipples Alloy (Black)
ERD (Effective Rim Diameter) 590mm
Spoke Holes Diameter 4.5mm
Valve Hole Diameter 6.5mm (Presta)
Hub Body Shimano 9-11S / Sram XD / Micro Spline 12S
Tubeless Compatible Yes
Includings Complete Wheelset + Spare Spoke + Spare Nipple
Spoke Tension 90 ~ 120Kgf ( ≤130Kgf )
Tire Size 2.0" ~ 2.55"
Tire Pressure ≤65psi
Carrying Capacity (One Wheel) 100Kg
Application XC / Marathon / Trail / All Mountain (AM) / Enduro

Write a review

Note: HTML is not translated!
    Bad           Good

Carbon Fiber AM Enduro Mountain Bike Complete Wheelset 1610g

  • Product Code: LM936ALS001B
  • USD 449

  • 5 or more USD 339
  • 10 or more USD 309
  • 20 or more USD 299

Available Options
