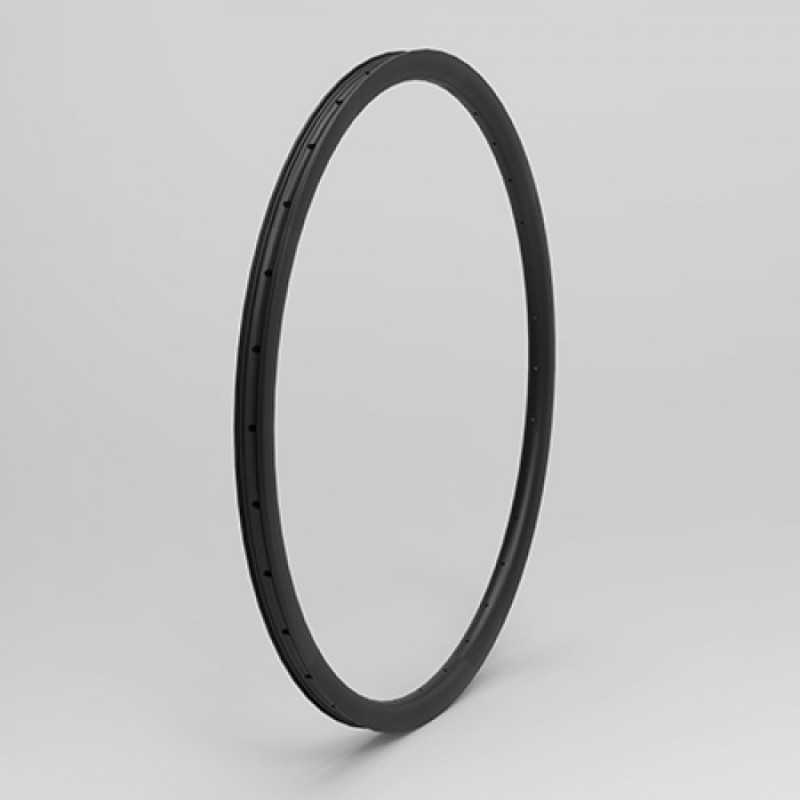

• [LB29RM27] 29" 27mm MTB Carbon Rim

The LB29AM27 carbon fiber rim is a model of symmetric mountain bike rim in size 29" 27mm width, weight 365g, tubeless compatible. This product is made of full carbon fibers.

This model of rim could be mounted tires at size around 1.5"~2.0". It can be used for variety of cycling forms like xc, marathon, trail and AM (All Mountain).

Product Code LB29RM27
Material Full Carbon Fibers
Type Clincher (Hookless)
Warranty Period 1 Year
Size 29" (BSD 622mm)
External Width 27mm
Internal Width 21mm
Depth 27mm
Weight 365g (AM) / 395g (Enduro)
ERD (Effective Rim Diameter) 586mm
Spoke Holes Angle ± 6°
Spoke Holes Diameter 4.5mm
Spoke Holes Count 28 / 32
Valve Hole Diameter 6.5mm (Presta)
Tubeless Compatible Yes
Carbon Weave Availability UD / 3K / 12K
Spoke Tension 80~130kgf
Tire Size 1.5" ~ 2.0"
Tire Pressure 30 ~ 60psi
Carrying Capacity (One Wheel) 110Kg
Application XC / Marathon / Trail / AM

Write a review

Note: HTML is not translated!
    Bad           Good

[LB29RM27] 29" 27mm MTB Carbon Rim

  • Product Code: LB29RM27
  • USD 165

Available Options

Tags: MTB Carbon Rim
