• [LB29RM32] 29" 32mm MTB Carbon Rim

The LB29RM32 carbon fiber rim is a model of symmetric mountain bike rim in size 29" 32mm width, weight 425g, tubeless compatible. This product is made of full carbon fibers.

This model of rim could be mounted tires at size around 1.75"~2.35". It can be used for variety of cycling forms like xc, am and enduro.

Product Code LB29RM32
Material Full Carbon Fibers
Type Clincher (Hookless)
Warranty Period 1 Year
Size 29" (BSD 622mm)

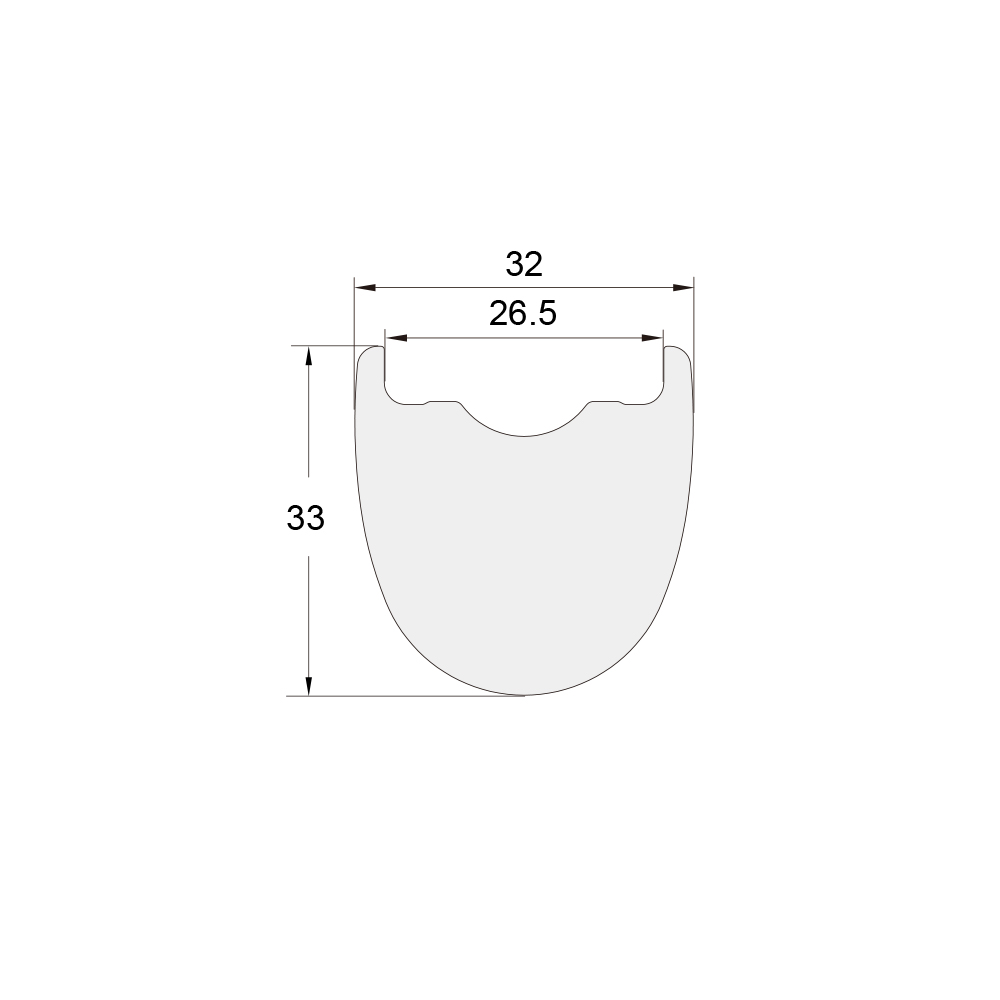

External Width 32mm
Internal Width 26.5mm
Depth 33mm
Weight 425g (AM) / 468g (Enduro)
ERD (Effective Rim Diameter) 575mm
Spoke Holes Angle ± 6°
Spoke Holes Diameter 4.5mm
Spoke Holes Count 28 / 32
Valve Hole Diameter 6.5mm (Presta)
Tubeless Compatible Yes
Carbon Weave Availability UD / 3K / 12K
Spoke Tension 80~130kgf
Tire Size 1.75" ~ 2.35"
Tire Pressure 30 ~ 60psi
Carrying Capacity (One Wheel) 130Kg
Application XC / AM / Enduro...
