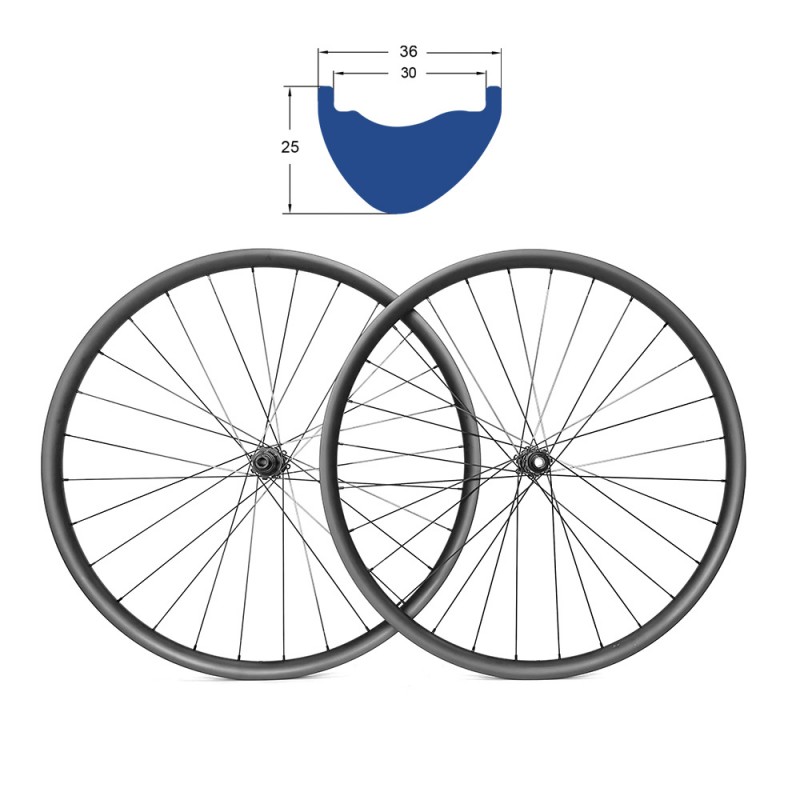

LBW aims to provide entry-level carbon fiber bicycle products with low price and quality assurance. This carbon fiber mountain wheelset LM936AXLS002B is only 1460g for cross country riding, equipped with LM936AX rims and our own brand hubs of model LS002B in size boost 15x110/12x148mm. It is equipped with Plain Gauge bladed spokes originally, but you could also upgrade the spokes to Pillar PA 1423 aero spokes or Pillar PSR X-Tra 1420 spokes.


More information about the carbon rims on this wheelset: LM930X

More information about the hubs on this wheelset: LS002B

Basic
Product Code LM936AXLS002B
Rim Type Hookless / Straight-Sidewall
Warranty Period 1 Year
Details
Wheelset Weight 1460g (680g front + 780g rear)
Rims LM936AX Carbon Fiber, UD Matte 28/28H, 36mm External, 30mm Internal, Asymmetric
Hubs LBW LBW LS002B 15x110 front 12x148mm rear, 28/28H, Straight-Pull, 6-Bolt, Ratchet 36T, Black
Spokes Plain (Black, Bladed) / Pillar Aero PA 1423 (Black) / Pillar Aero PSR X-Tra 1420 (Black)
Nipples Alloy (Black)
ERD (Effective Rim Diameter) 590mm
Spoke Holes Diameter 4.5mm
Valve Hole Diameter 6.5mm (Presta)
Hub Body Shimano 9-11S / Sram XD / Micro Spline 12S
Tubeless Compatible Yes
Includings Complete Wheelset + Spare Spoke + Spare Nipple
Recommendation
Spoke Tension 90 ~ 120Kgf ( ≤130Kgf )
Tire Size 2.0" ~ 2.55"
Tire Pressure ≤65psi
Carrying Capacity (One Wheel) 100Kg
Application
Application XC / Marathon

Write a review

Note: HTML is not translated!
    Bad           Good

LM936AXLS002B Carbon MTB XC Wheelset | 29" 36mm 110/148mm

  • Product Code: LM936AXLS002B
  • USD 519


  • 5 or more USD 339
  • 10 or more USD 329
  • 20 or more USD 309

Available Options
